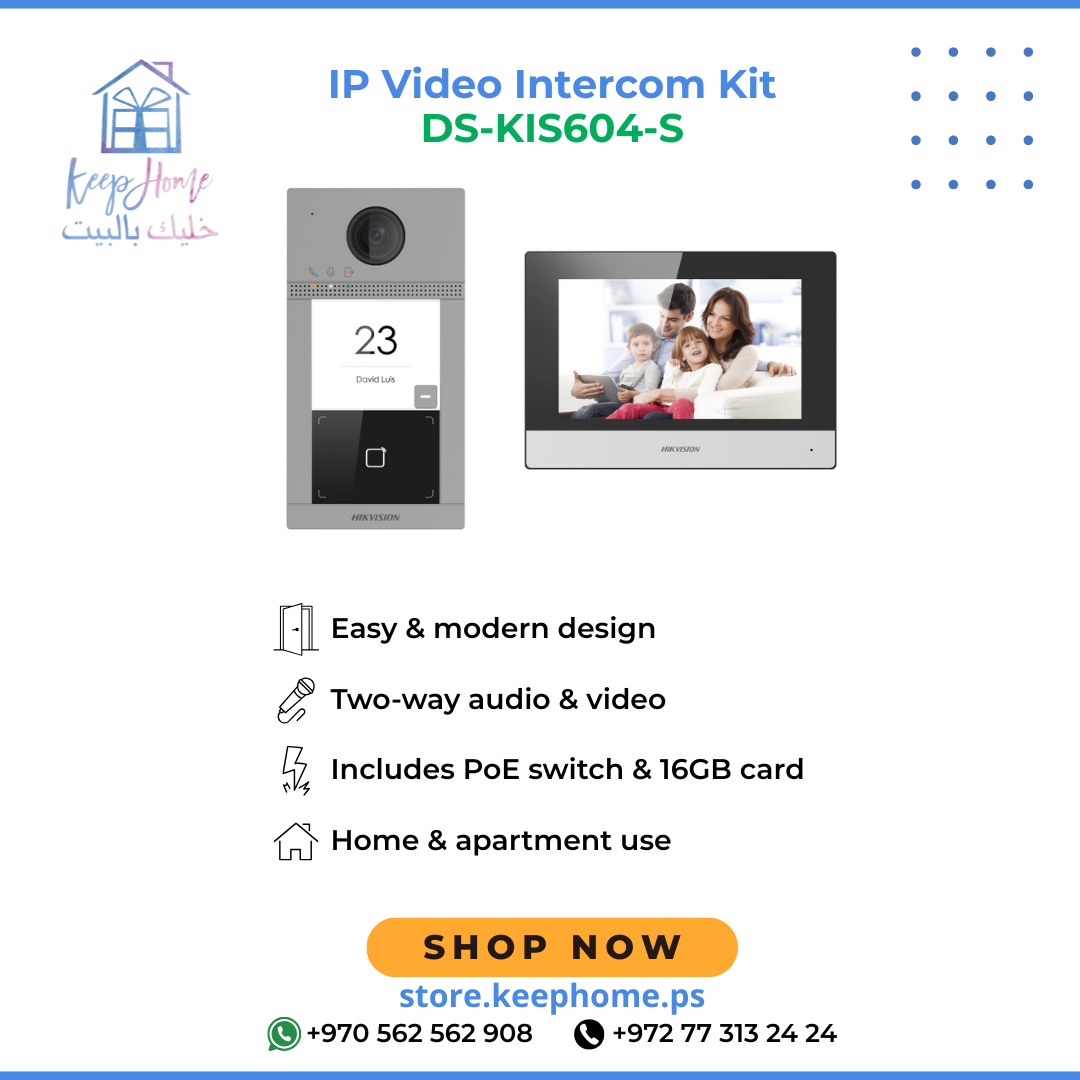

Hikvision DS-KIS604-S IP Video Intercom Kit

The Hikvision DS-KIS604-S is a comprehensive IP video intercom solution designed for villas and homes. This kit includes:

• DS-KV8113-WME1(C): 2MP HD outdoor door station with a wide 131° horizontal and 78° vertical field of view. Features a built-in MF card reader for access control and supports PoE for simplified installation.

• DS-KH6320-WTE1: 7″ color touch screen indoor monitor with a resolution of 1024×600. Offers two-way audio, noise suppression, and echo cancellation. Supports Wi-Fi 802.11 b/g/n for mobile app connectivity.

• 4-Port PoE Switch: Provides standard PoE power supply for the devices.

• 16GB TF Card: Stores messages and captured pictures for easy retrieval.

This intercom kit supports remote access via the Hik-Connect mobile app, allowing users to manage and monitor their intercom system from anywhere.

Key Features:

• 2MP HD camera with wide dynamic range (WDR) support.

• Wide field of view: Horizontal 131°, Vertical 78°.

• Built-in MF card reader for access control.

• Supports PoE for easy installation.

• Remote access via Hik-Connect mobile app.

• Stores messages and captured pictures in the TF card.

Specifications:

Door Station (DS-KV8113-WME1(C)):

• Camera: 2MP HD

• Field of View: Horizontal 131°, Vertical 78°

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

• Access Control: MF card reader

• Power Supply: PoE

• Operating System: Embedded Linux

• RAM: 256MB

• Flash: 32MB

Indoor Monitor (DS-KH6320-WTE1):

• Display: 7″ TFT color touch screen

• Resolution: 1024×600

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

• Wi-Fi: 802.11 b/g/n

• Power Supply: 12 VDC, IEEE802.3af PoE

• Operating System: Embedded Linux

• Memory: 128MB RAM, 32MB Flash

PoE Switch:

• Ports: 4× 10/100 Mbps RJ45

• Power Output: IEEE802.3af PoE

• Power Supply: Standard PoE

16GB TF Card:

• Capacity: 16GB

• Type: TF (MicroSD)

• Usage: Storage for messages and captured pictures

Installation Notes:

• Designed for surface mounting.

• Supports up to 16 additional indoor monitors.

• IP65 rated for outdoor durability.
