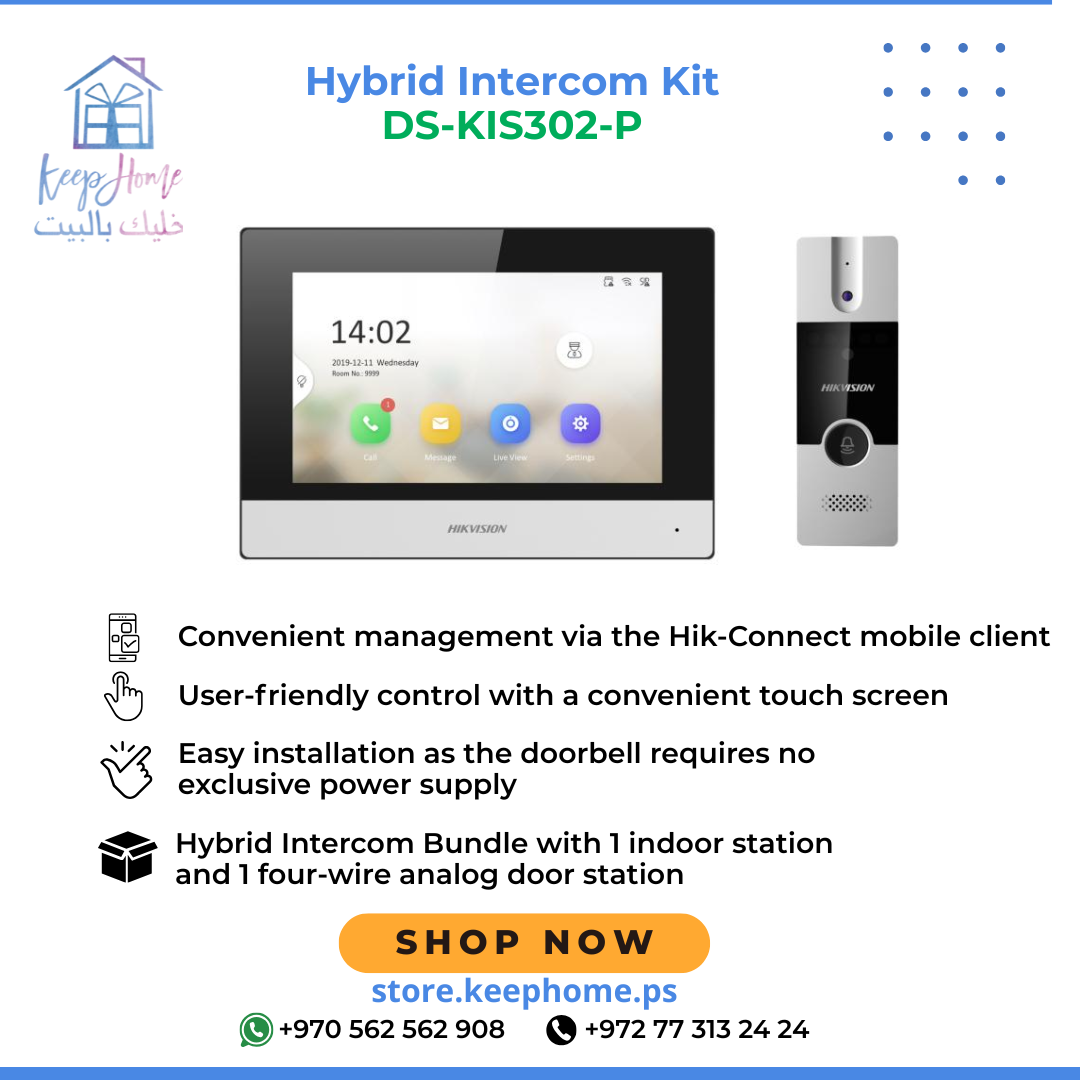

Hikvision DS-KIS302-P Hybrid Intercom Kit

Main Description:

The Hikvision DS-KIS302-P Hybrid Intercom Kit is a comprehensive solution designed for residential and small business applications. It includes one indoor station and one four-wire analog door station, providing a blend of analog and IP intercom functionalities.

Key Features:

• Hybrid Design: Combines the simplicity of analog with the advanced features of IP intercom systems.

• High-Definition Video: The door station offers Full HD resolution (1920×1080), ensuring clear video quality.

• Wide Field of View: Horizontal FOV of 66.2° and vertical FOV of 37.2° for comprehensive door monitoring.

• Touch Screen Control: The indoor station features a 7-inch capacitive touch screen for intuitive operation.

• Power over Ethernet (PoE): Simplifies installation by delivering power and data over a single cable.

• Mobile Management: Manage the system remotely via the Hik-Connect mobile application.

• Easy Installation: The door station requires no exclusive power supply, reducing setup complexity.

Specifications:

Door Station:

• Video Resolution: 1920×1080 (Full HD)

• Field of View: Horizontal: 66.2°, Vertical: 37.2°

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

• Power Supply: 12 VDC

• Power Consumption: Max. 5 W

• Dimensions: 135.14 mm × 49.6 mm × 41.93 mm

Indoor Station:

• Display: 7-inch capacitive touch screen

• Resolution: 1024×600

• Audio Compression: G.711 U, G.711 A

• Audio Input/Output: Built-in omnidirectional microphone and loudspeaker

• Network Interface: 1 RJ-45 10/100 Mbps self-adaptive

• Power Supply: IEEE802.3af PoE, 12V DC

• Power Consumption: ≤ 6 W

• Dimensions: 200 mm × 140 mm × 23.6 mm
