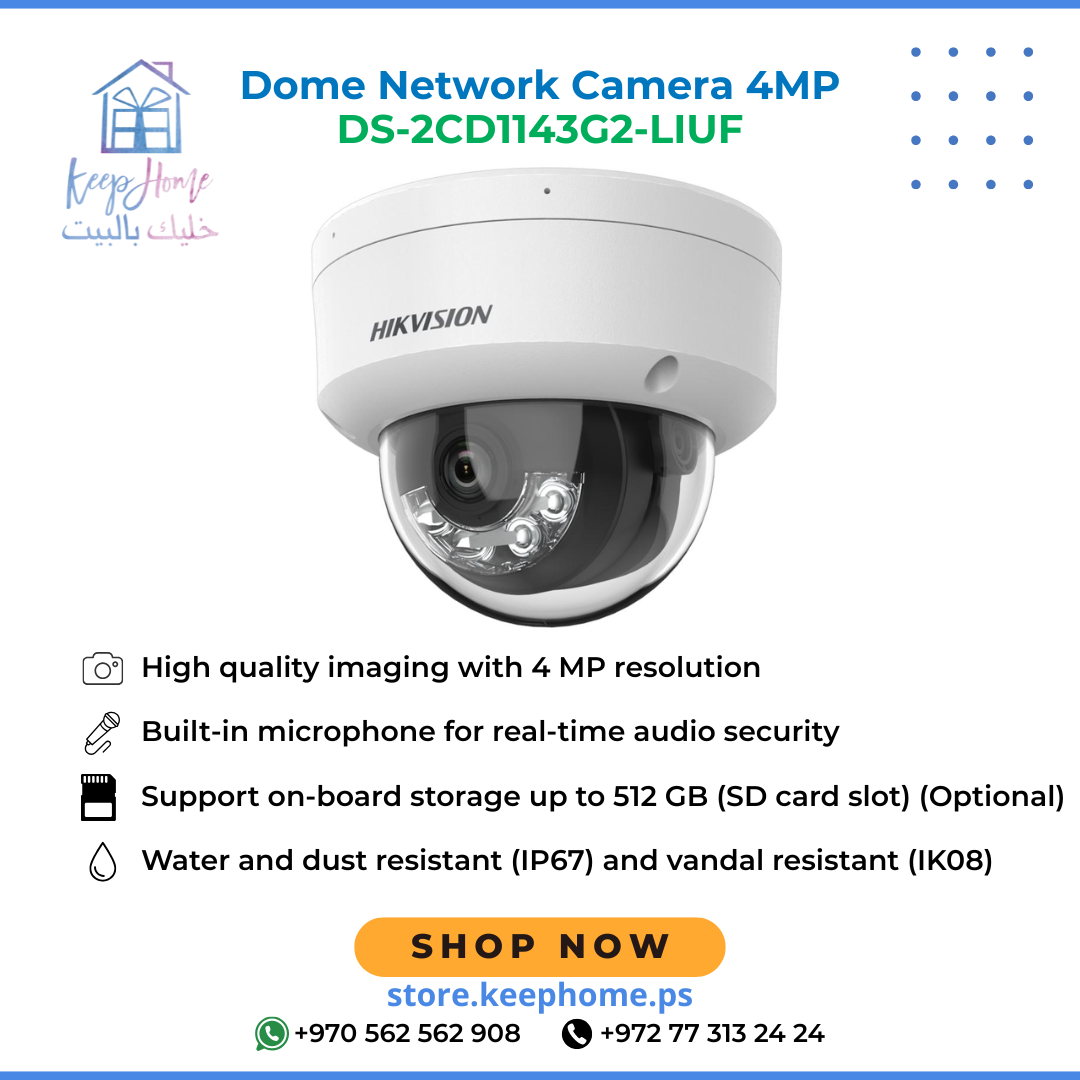

Hikvision DS-2CD1143G2-LIUF 4MP Smart Hybrid Light Fixed Dome Network Camera

The Hikvision DS-2CD1143G2-LIUF is a high-performance 4MP Smart Hybrid Light Fixed Dome Network Camera designed for superior surveillance in various lighting conditions. Equipped with a 2.8mm or 4mm fixed lens, it delivers crisp and detailed images. The camera features Smart Dual-Light technology, providing both white light and infrared illumination up to 30 meters, ensuring clear images day and night. It supports human and vehicle detection, enhancing security monitoring with precision. The built-in microphone captures real-time audio, adding an extra layer of security. With an IP67 rating, the camera is resistant to dust and water, making it suitable for outdoor installations. The IK08 vandal-resistant design ensures durability in challenging environments.

Key Features:

• High-Resolution Imaging: 4MP (2560 × 1440) resolution for clear and detailed images.

• Smart Dual-Light Technology: Provides both white light and infrared illumination up to 30 meters for enhanced night-time visibility.

• Human and Vehicle Detection: Advanced analytics for precise monitoring.

• Built-in Microphone: Captures real-time audio for added security.

• Efficient Compression: Supports H.265+ compression technology for reduced bandwidth and storage requirements.

• On-board Storage: Supports microSD card storage up to 512 GB (optional).

• Durability: IP67 rated for water and dust resistance; IK08 rated for vandal resistance.

• Lens Options: Available with 2.8mm and 4mm fixed focal lengths.

Specifications:

• Model: DS-2CD1143G2-LIUF

• Sensor: 1/3″ Progressive Scan CMOS

• Max. Resolution: 2560 × 1440 (4MP)

• Lens Options: 2.8mm or 4mm fixed focal length

• Aperture: F1.6

• Field of View:

  • 2.8mm: Horizontal 98°, Vertical 54°, Diagonal 114°

  • 4mm: Horizontal 78°, Vertical 42°, Diagonal 93°

• Illumination: Smart Dual-Light (white light and infrared) up to 30 meters

• Audio: Built-in microphone

• Compression: H.265+

• Storage: microSD card slot, up to 512 GB (optional)

• Ingress Protection: IP67

• Vandal Resistance: IK08

• Power Supply: 12 VDC ± 25%, PoE (802.3af)

• Operating Conditions: -30°C to +60°C, Humidity: 95% or less (non-condensing)

• Dimensions: Ø121.4 mm × 97.7 mm

• Weight: Approx. 400 g
